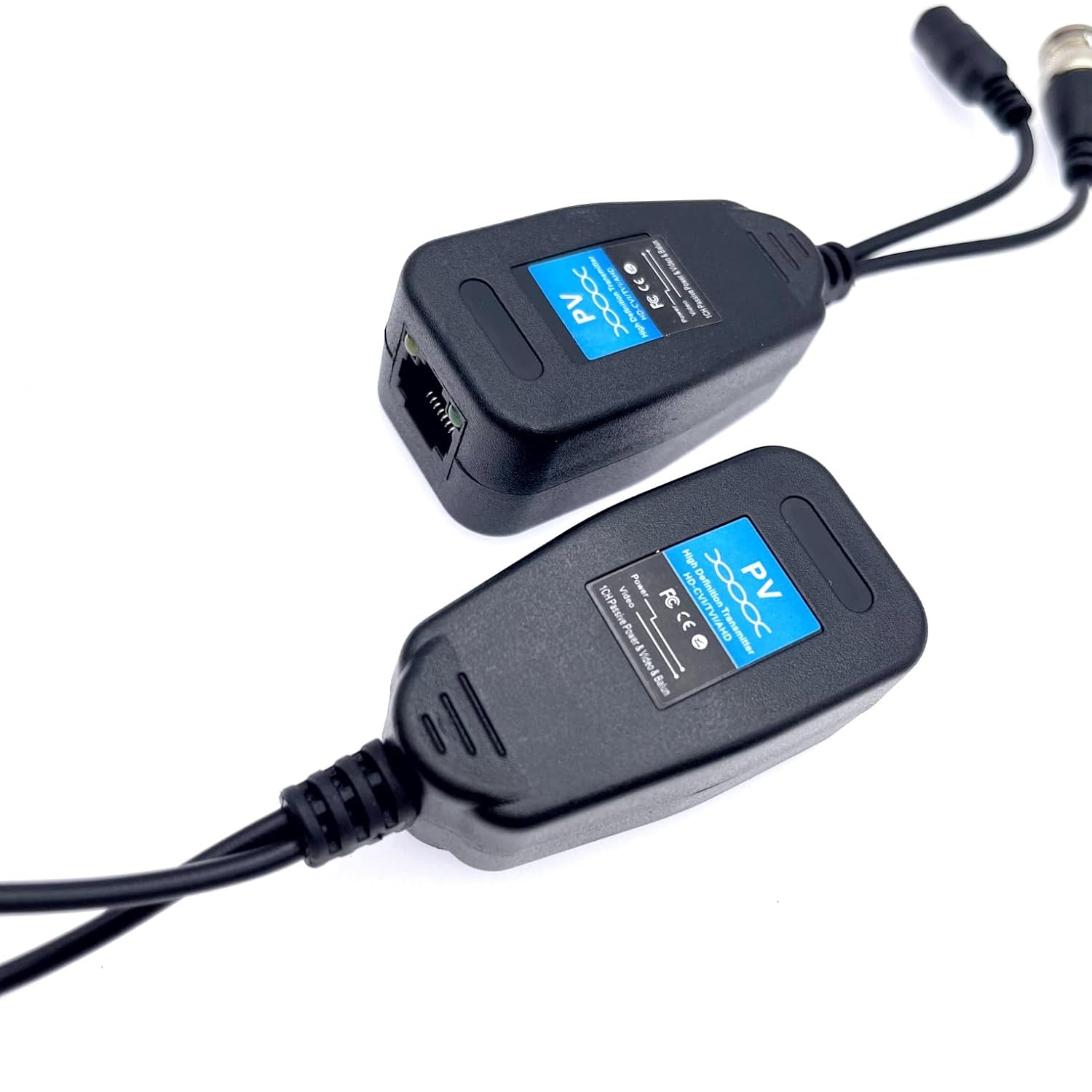

JZK 2 Pairs Video Balun RJ45 to BNC Transceiver Transmitter HD-CVI/TVI/AHD/CVBS with Power Connector for 1080P 3MP 4MP 5MP 8MP CCTV Security DVR Surveillance Camera System, BNC to RJ45
Product details
| Management number | 239267357 | Release Date | 2026/07/14 | List Price | $3.47 | Model Number | 239267357 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package includes: 2 Pairs (4 Pcs) RJ45 Video Balun to BNC Transceiver with Connectors Connector 1: RJ45 to BNC Male & DC Male Plug Connector 2: RJ45 to BNC Male and DC Female Compatible with CVI, TVI, CVBS and AHD video devices, suitable for 1080P 3MP 4MP 5MP 8MP CCTV cameras, monitor, DVR card and recorder etc. Easy installation, using standard UTP CAT5 cable system and low voltage power supply. The LED indicates (green light) that the model is working, (yellow light) does not work. Video transmission via UTP CAT5. Supply Voltage Drop Calculations: For DC 12V 1A, cable distance should not exceed 90ft/27m. For longer distances, please use 14V DC, 16V DC, 18V DC, 20-48V DC. Note: This RJ45 video balun is not waterproof. For indoor use only. Make sure the RJ45 camera side and DVR side are the same standard. Improper mixing of colors can lead to a burn of the camera and devices.
- Package contains: 2 pairs (4 pieces ) video balun RJ45 to BNC transceiver with connectors. Connectors 1: RJ45 to BNC male and DC male jack. Connector 2: RJ45 to BNC male and DC female jack.
- LED indicate (green light) is working model , (yellow light) not working. Video transmission Via UTP CAT5.
- Compatible with CVI, TVI, CVBS and AHD video devices, Fit for 1080P 3MP 4MP 5MP 8MP CCTV Cameras, monitor, DVR card and recorder etc. Easy installation, using the standard UTP CAT5 cable system and low voltage power supply.
- Power voltage drop calculations: For 12V DC 1Amp, Cable distance should not exceed 90 feet/27 meters. For longer distances, please use 14V DC, 16V DC,18V DC, 20-48V DC .
- Note: This RJ45 video balun is not waterproof. For indoor use only. Make sure the rj45 for camera side and DVR side are the same standardsWrongfully mixing the colors may result in burning the camera and devices.
| ASIN | B0CNRVH817 |
|---|---|
| Color | Black |
| Model | 78819 |
| Brand Name | JZK |
| Cable Type | Coaxial |
| Item Shape | Round |
| Unit Count | 4.0 Count |
| Item Weight | 157 Grams |
| Part Number | 78819 |
| Manufacturer | JZK-78819 |
| Connector Type | BNC |
| Number of Pins | 32 |
| Maximum Current | 1 Amps |
| Maximum Voltage | 24 Volts (DC) |
| Number of Items | 2 |
| Connector Gender | Male-to-Female |
| Specification Met | ANSI, CE, CEC, CL2, CL3, CSA, EIA, ETL, FCC, IEC, IEEE, IMSA, ISO, MFI, NEMA, NFPA, RoHS, SAE, TIA, UL, USB-IF |
| Compatible Devices | Monitor |
| Indoor Outdoor Usage | Indoor |
| Connectivity Technology | Ethernet |
| Ethernet Cable Category | Cat 5 |
| Recommended Uses For Product | Connecting CCTV Cameras to DVRs/Monitors, Extending Signal Transmission Range for Surveillance Systems |
| Other Special Features of the Product | High Speed |
